Products

Air – Hydraulic Pumps.

Hydra-Matic Machine and Pumps Ltd. has the mission to be the supplier of choice for all users of small air - hydraulic pumps in its class.

We are the low cost, high quality producer of such pumps in North America.

Therefore our products are Air - Hydraulic Pumps as follows:

Model	Control	PSI (@ 120 psi air pressure)	Oil Capacity (Cubic inch)

HM 10	Foot (portable)	10,000	90
HM 10 D	Foot (portable)	10,000	140
HM 45	Foot (portable)	4,500	90
HM 45 D	Foot (portable)	4,500	140
HMH 10	Hand (mounted)	10,000	35

Our Hydra-Matic Pumps are made from aluminium alloys, brass and steel, with some standard hardware components that allow for fast replacement when needed. All pumps have a 1/4 ” NPT air port and a 3/8 ” NPT hydraulic adaptor port. This allows our pumps to be used with any suitable accessory or equipment, as long as the correct connectors or quick couplers are used.

Special orders can be accommodated for HMH pumps for larger oil capacity or 4,500 psi hydraulic pressure output.

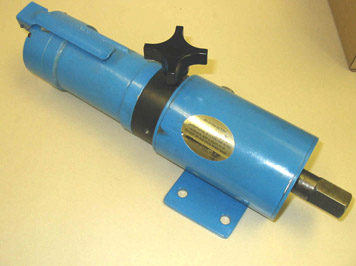

Model HM-10 Foot Controlled Pump

Model HMH-10 Hand Controlled Pump

All our Hydra-Matic Pumps are available through our
network of distributors across North America.

Machined Parts

Since we are also a Machine Shop, we produce machined parts for OEMs in diverse industries such as:

Automotive
Industrial Equipment
Construction Equipment.
Tooling
Fixturing
